ZS/FR 09 and 10 February 2010

Back to TROPO page

Openings of 09 and 10 February 2010 - 2m and FIRST 70cms qso

STILL UNDER CONSTRUCTION

The general situation :

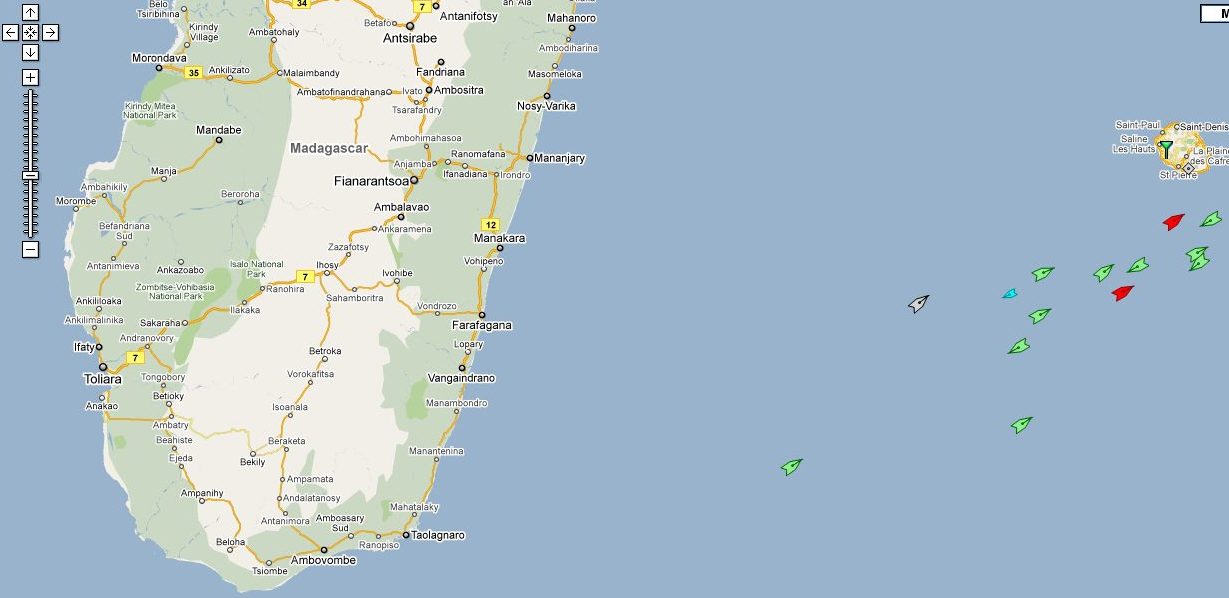

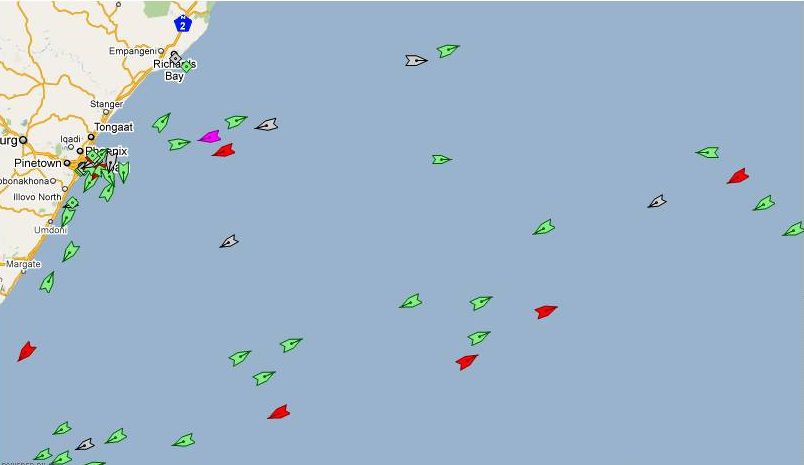

1-AIS RX

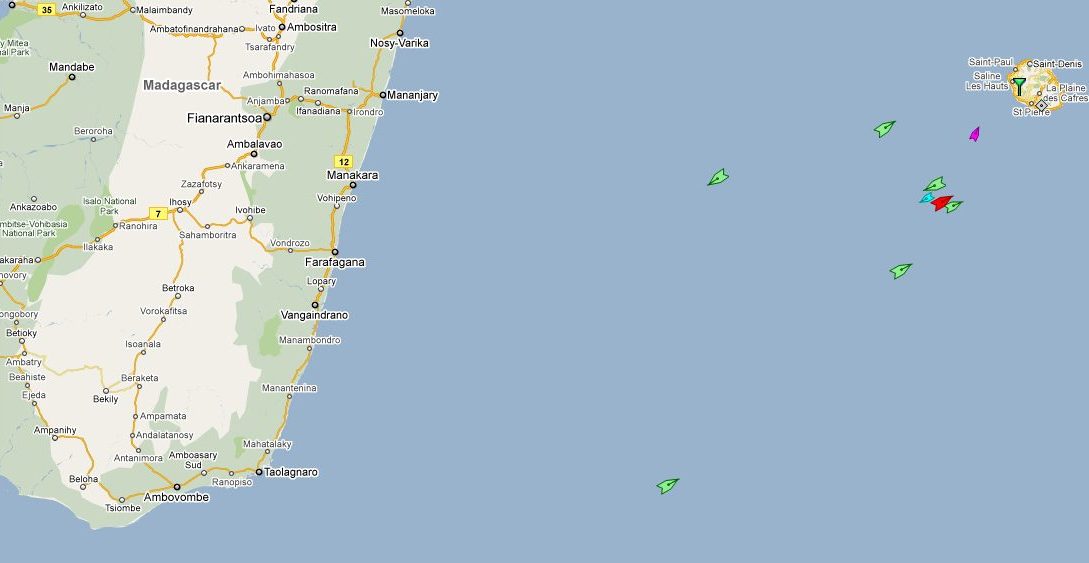

FR-2010-02-09-1930z


FR-2010-02-10-1530

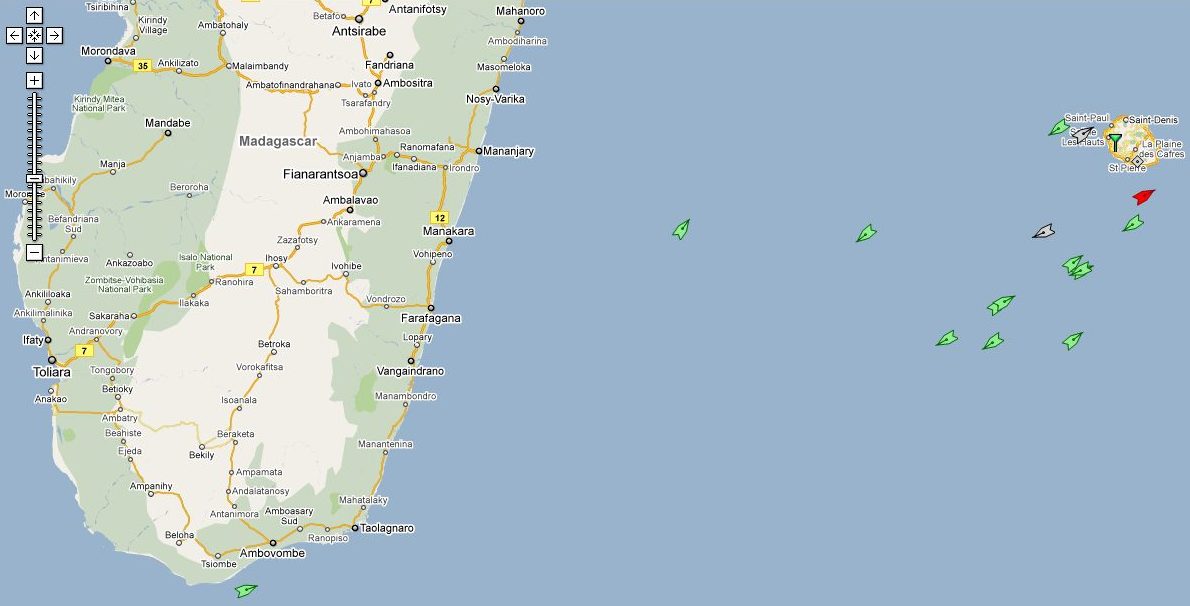

FR-2010-02-10-1630z

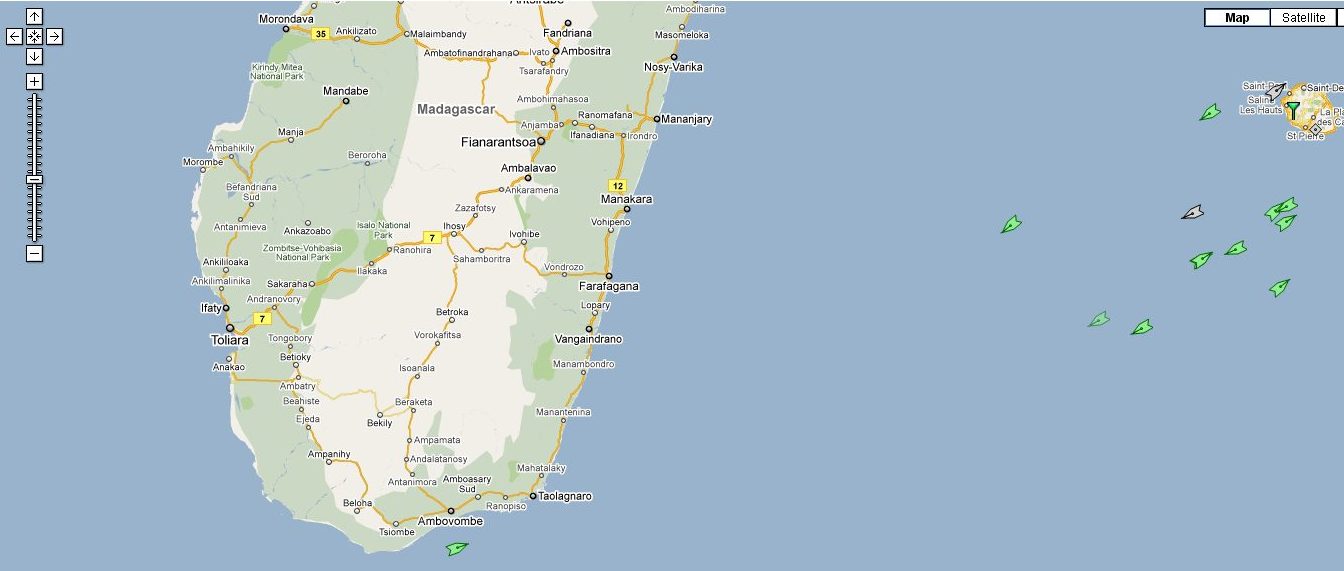

FR-2010-02-10-1730z

--------------------------------------------------------------------------------------------------------------------------------------------------------------

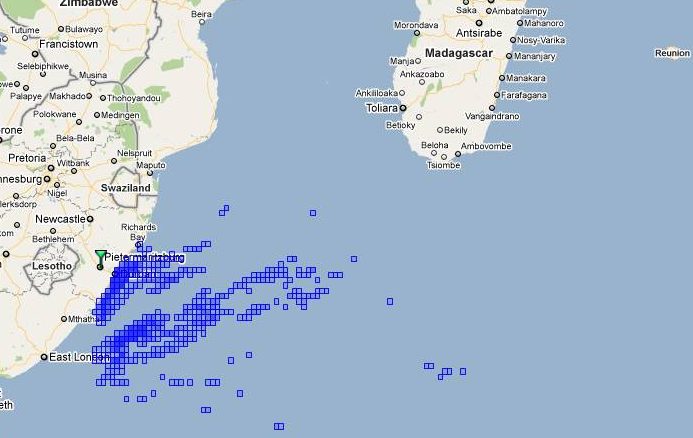

zs-2010-02-09-cov

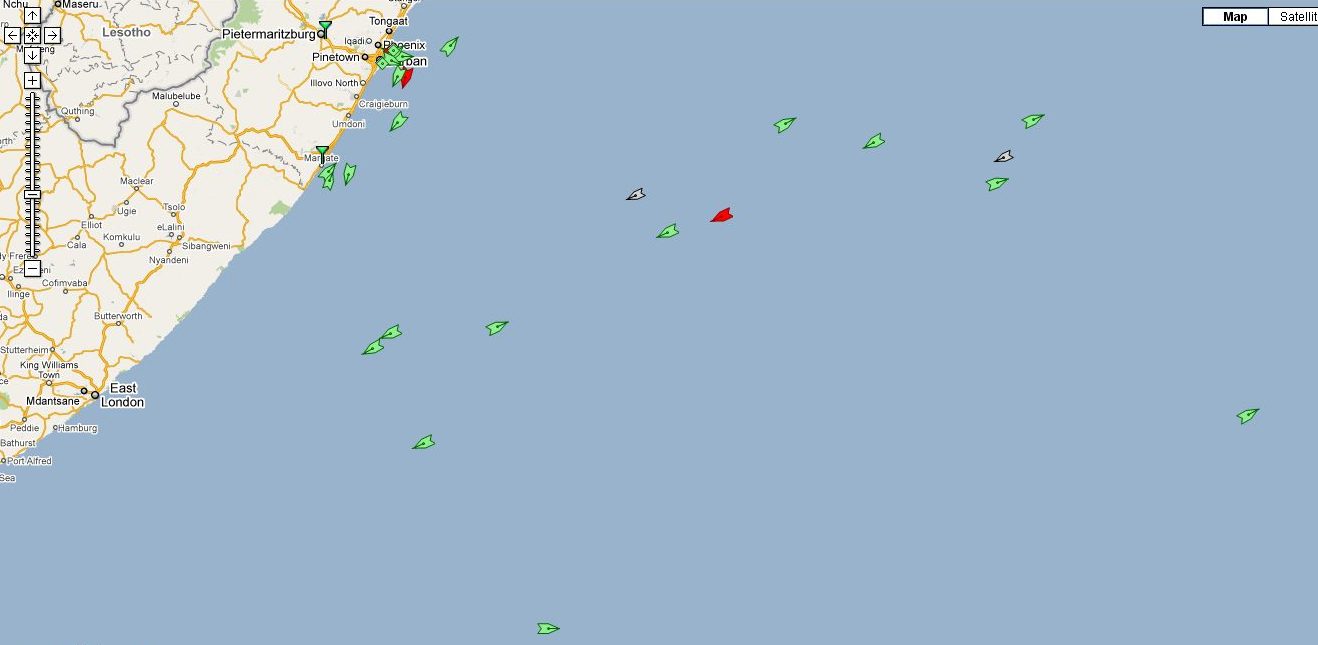

zs-2010-02-09-19z.

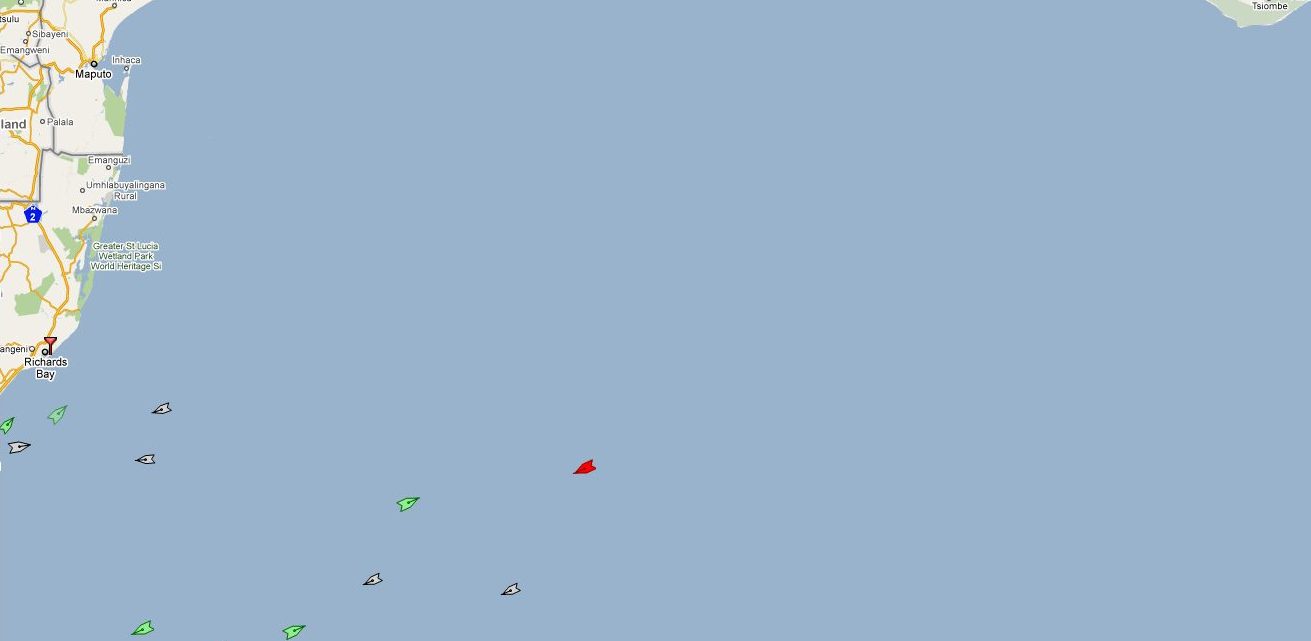

zs-2010-02-09-22z

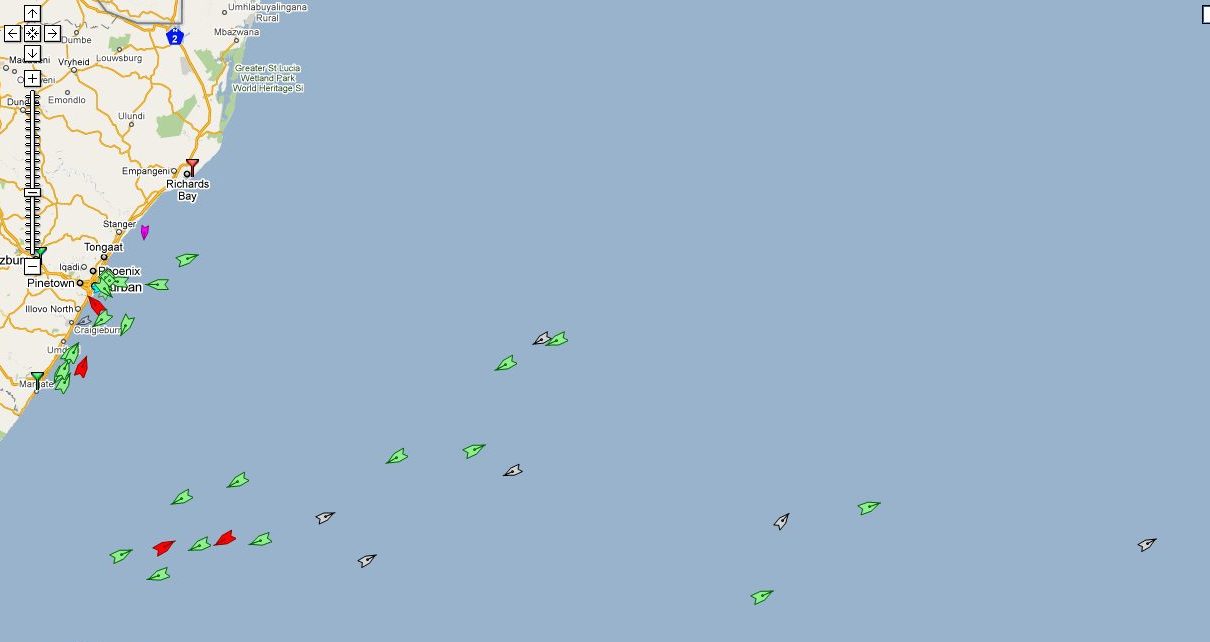

ZS-2010-02-10-0430z

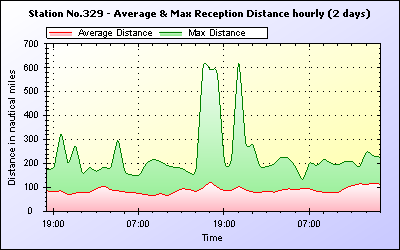

fr-graphstation-09 to 11-02-2010

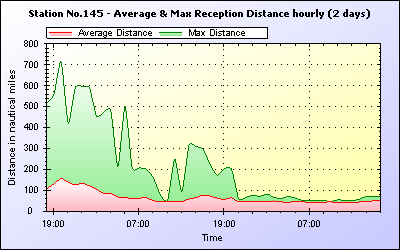

zs-graphstation-09 to 11-02-2010

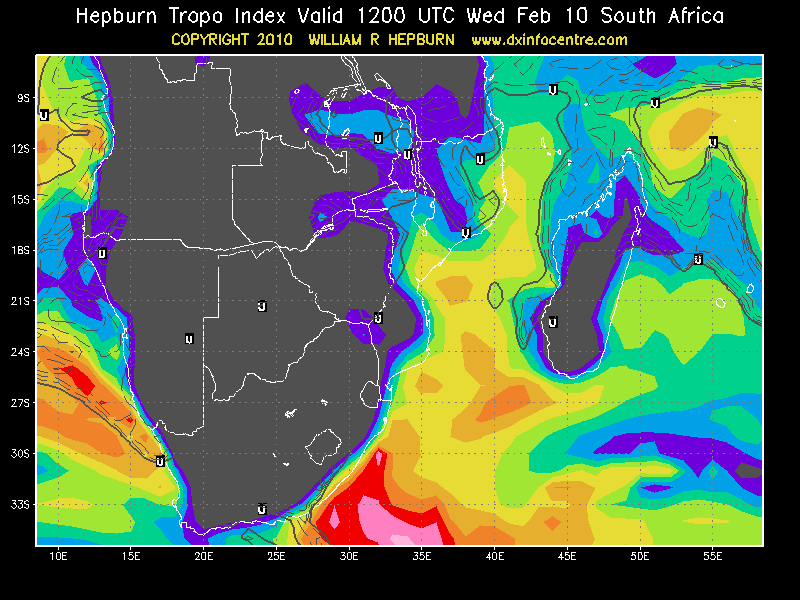

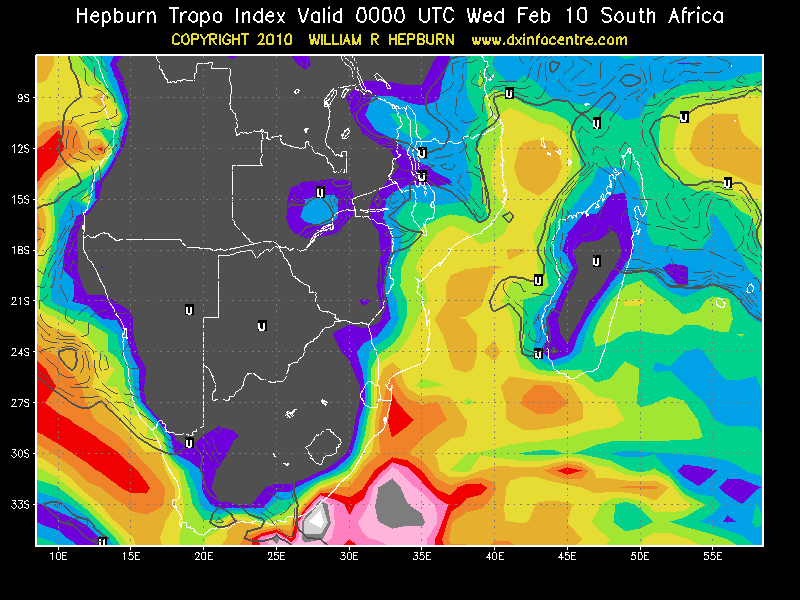

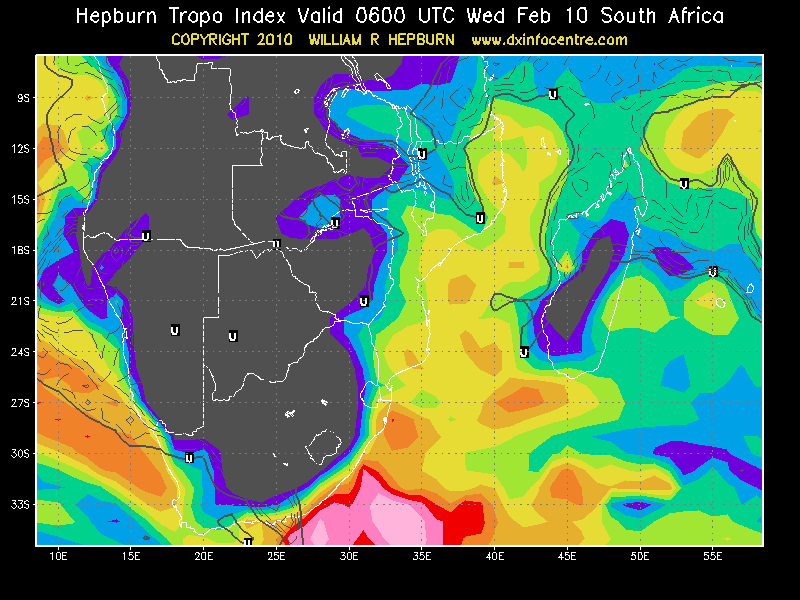

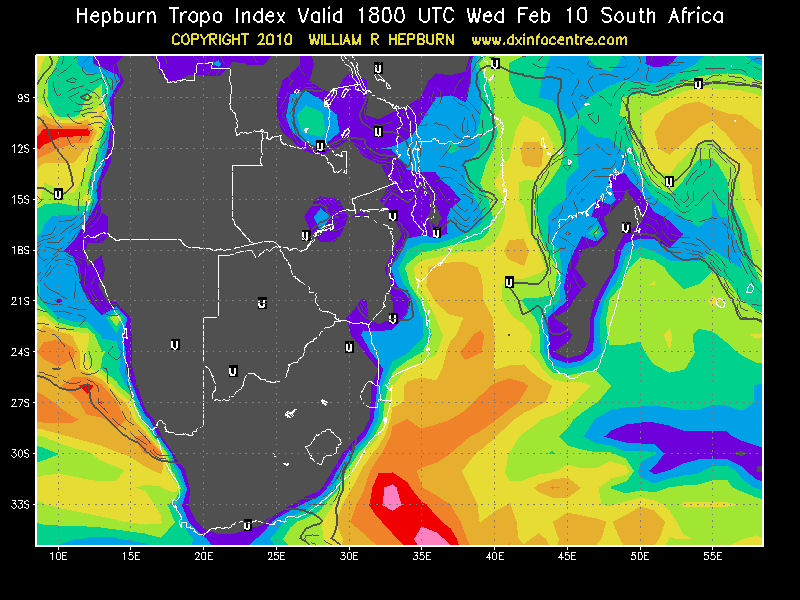

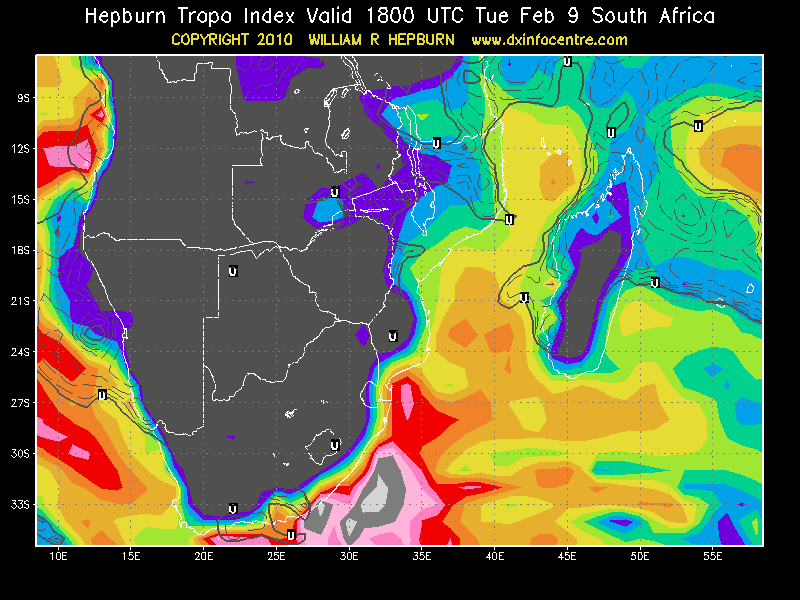

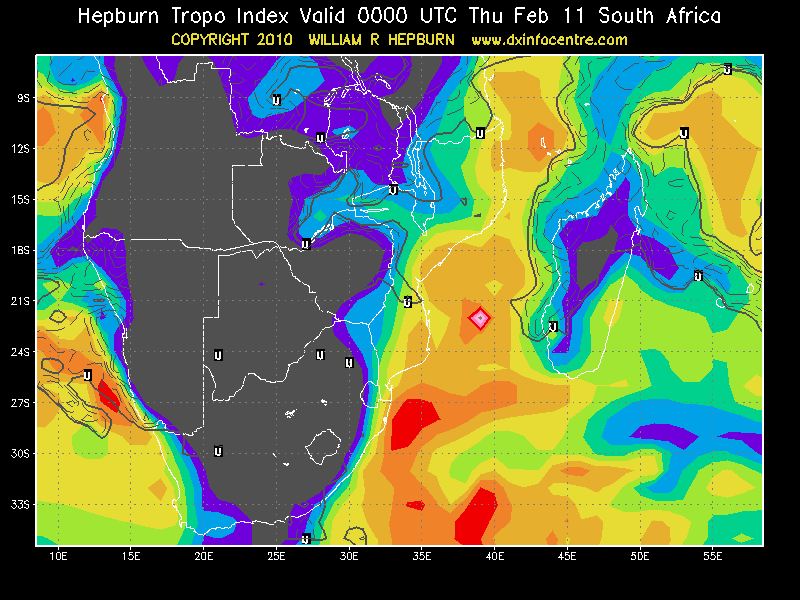

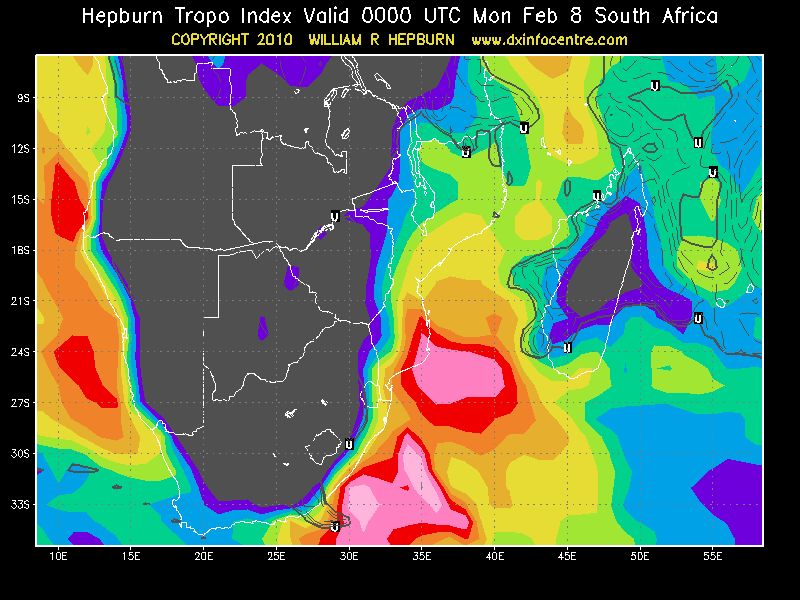

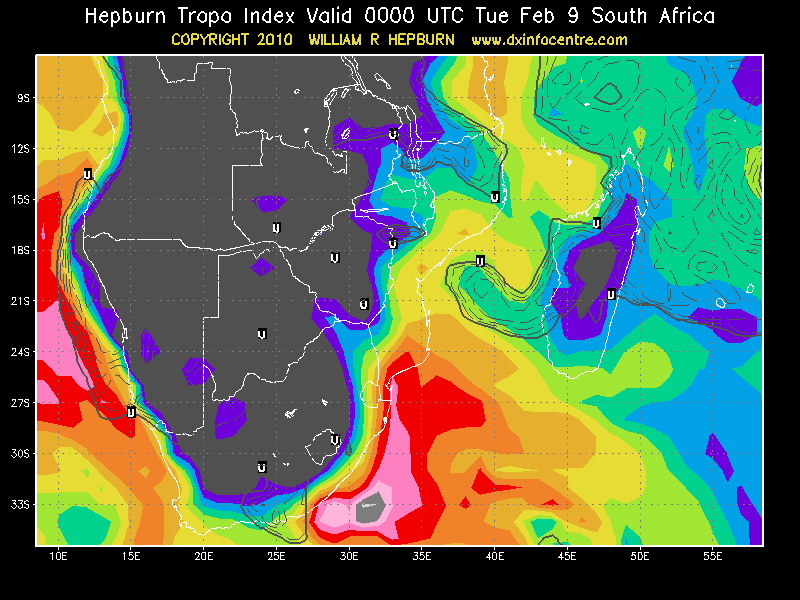

2-The Hepburn predictions

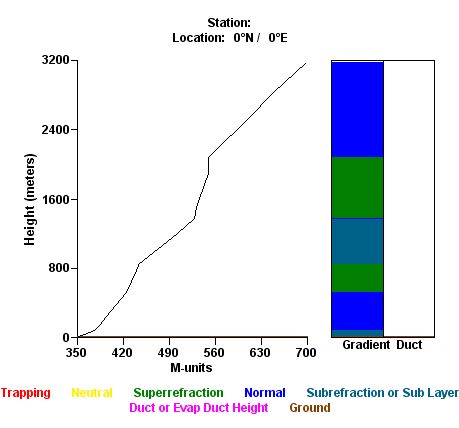

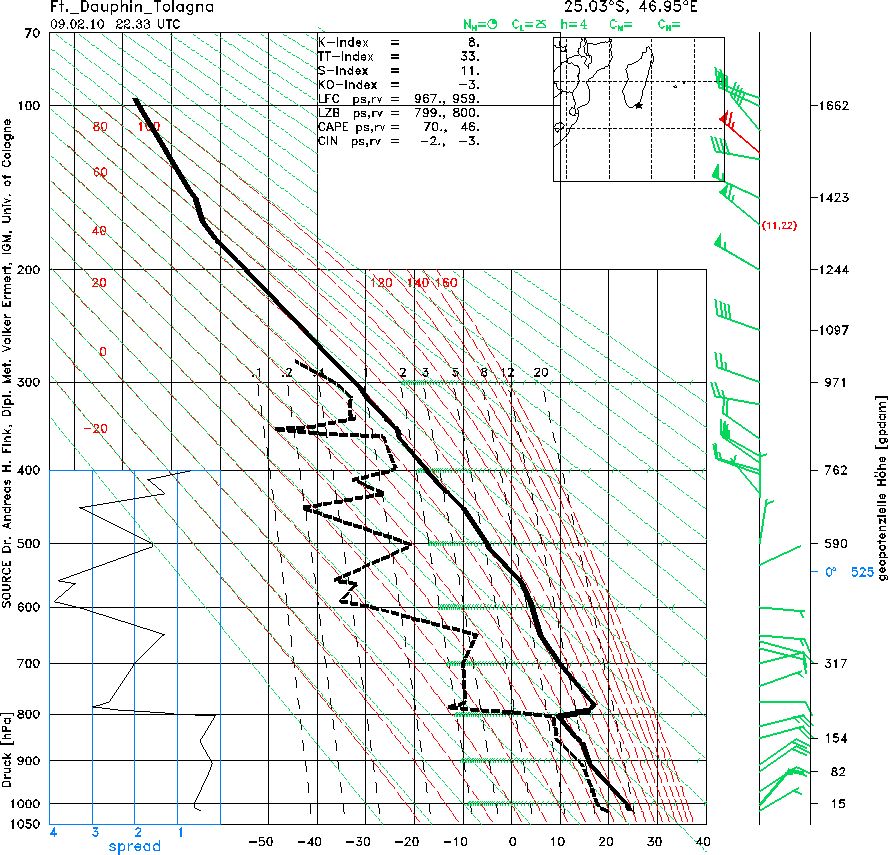

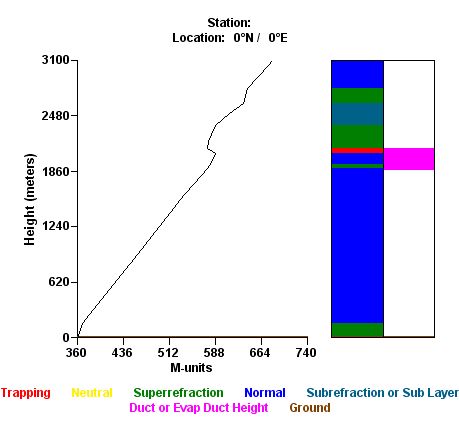

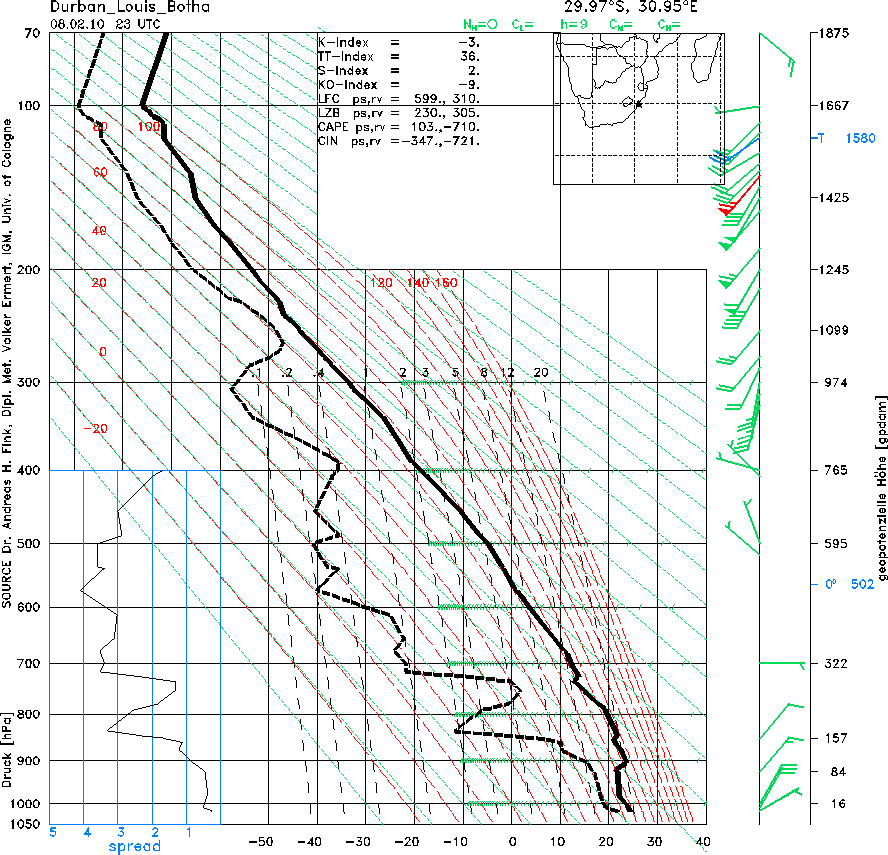

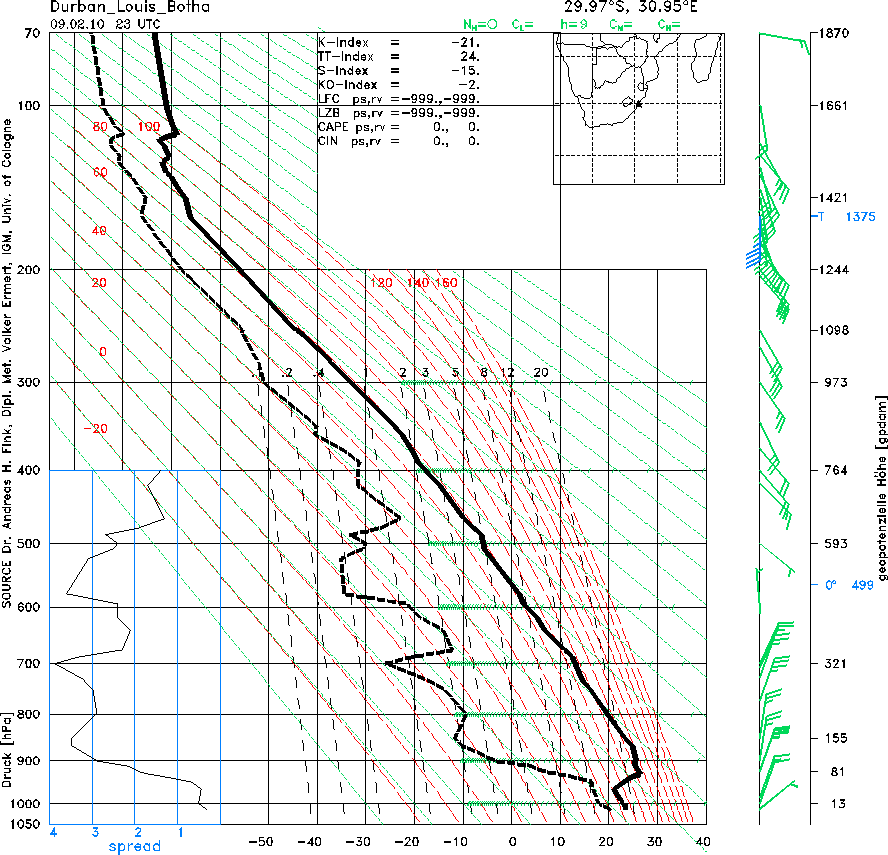

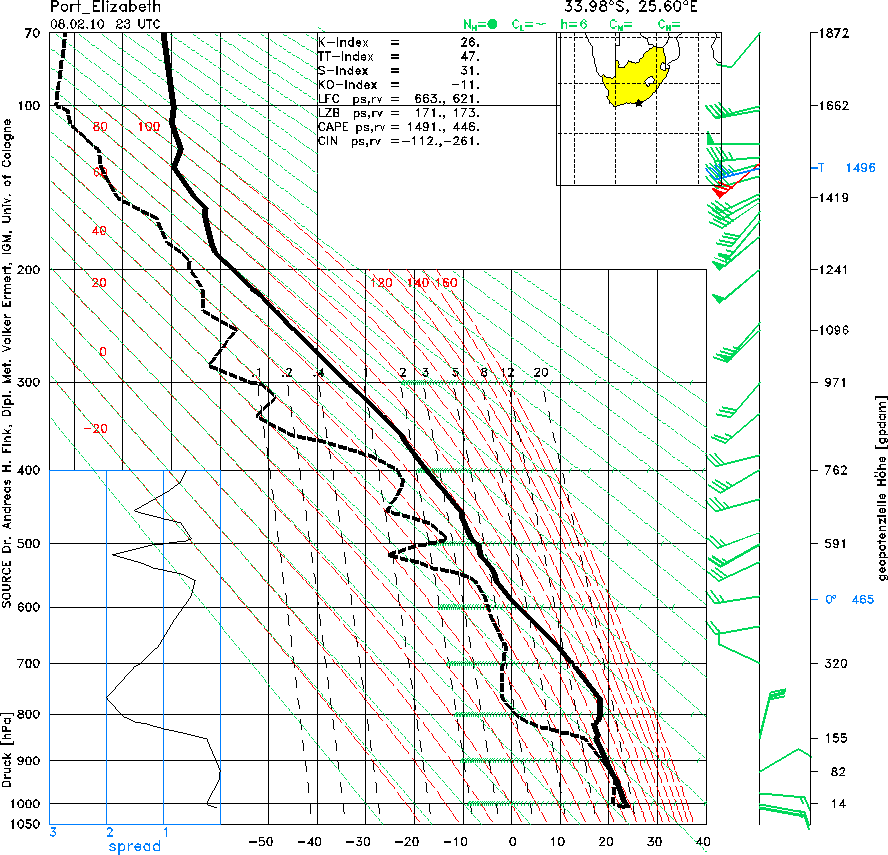

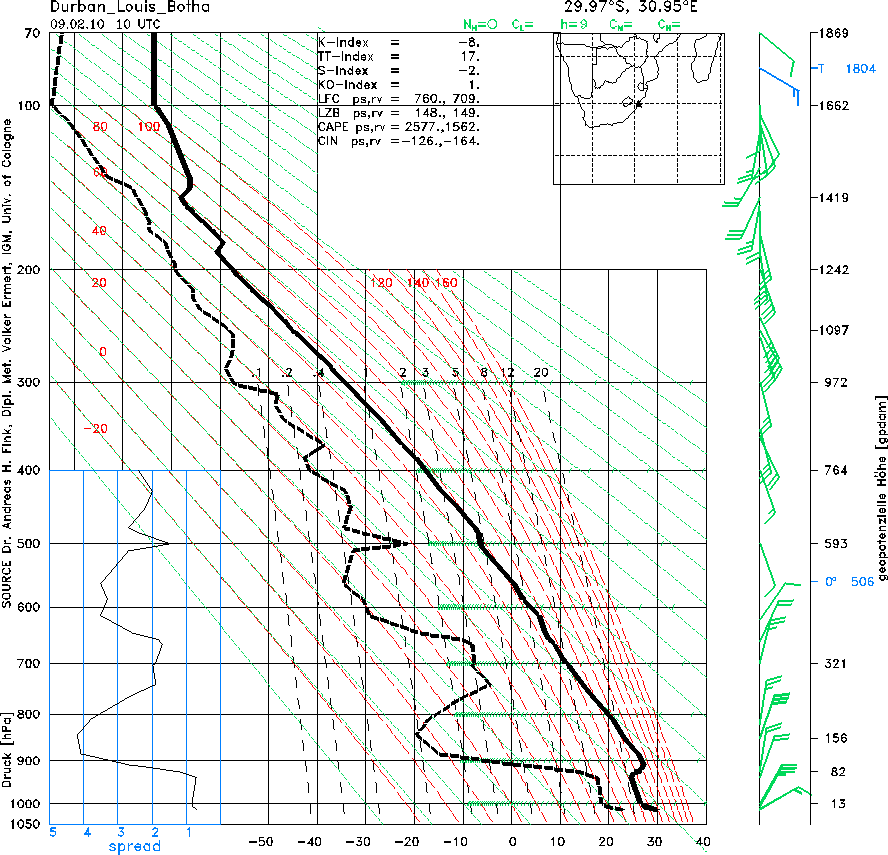

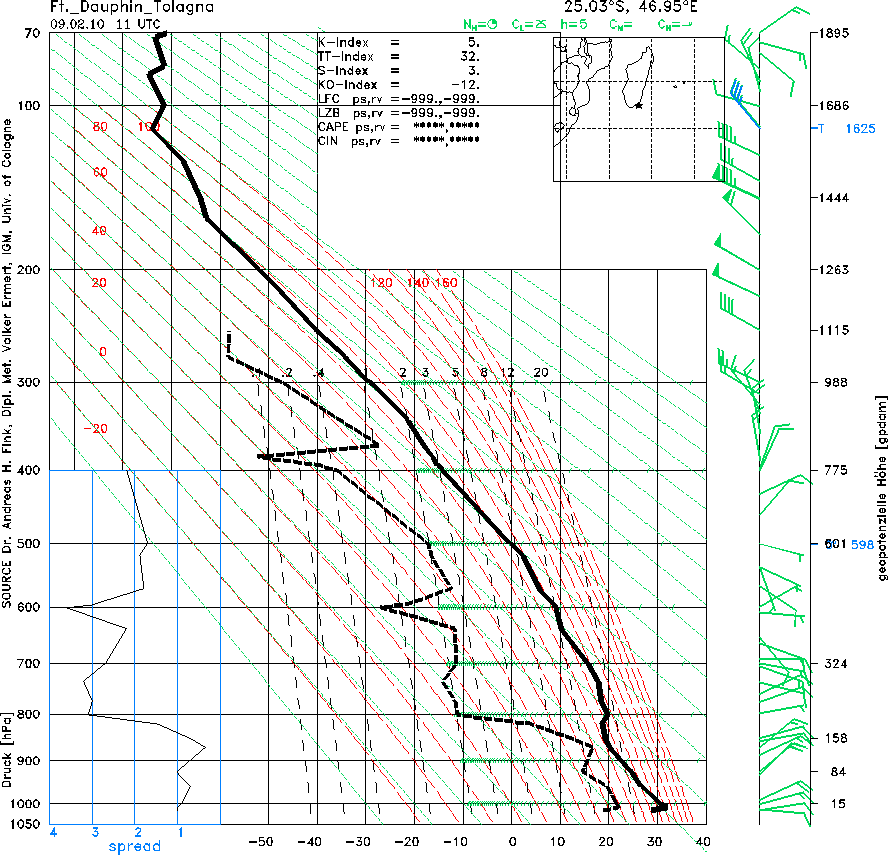

3-The radiosounding data

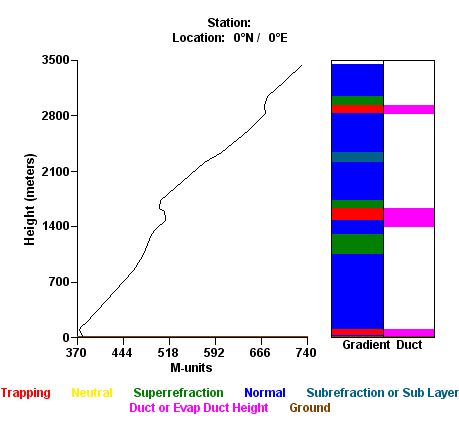

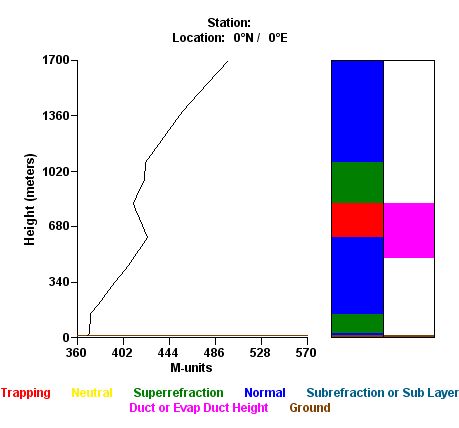

	09-feb-2010-00z	09-feb-2010-09z	10-feb-2010-00z	10-feb-2010-09z

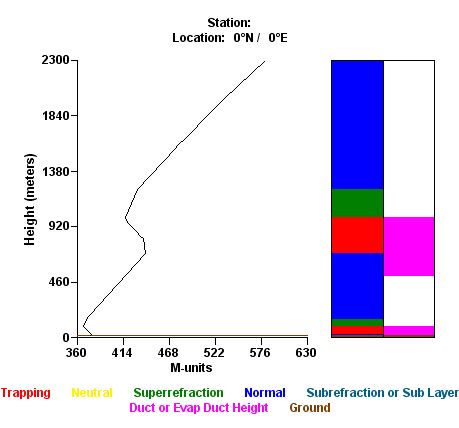

DURBAN
	09-feb-2010-00z	09-feb-2010-12z	10-feb-2010-00z	10-feb-2010-12z

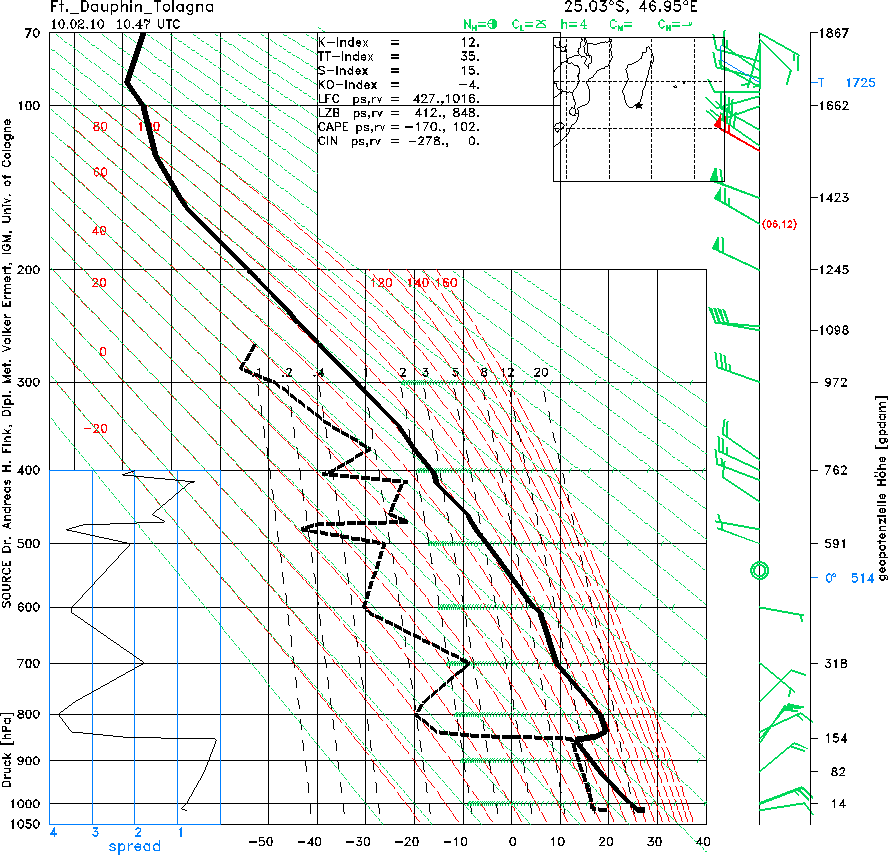

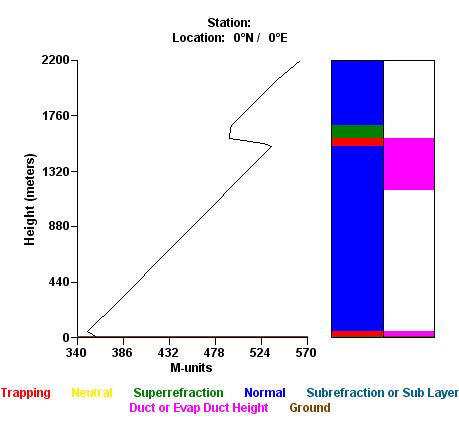

5R8
	09-feb-2010-00z	09-feb-2010-09z	10-feb-2010-00z	10-feb-2010-09z

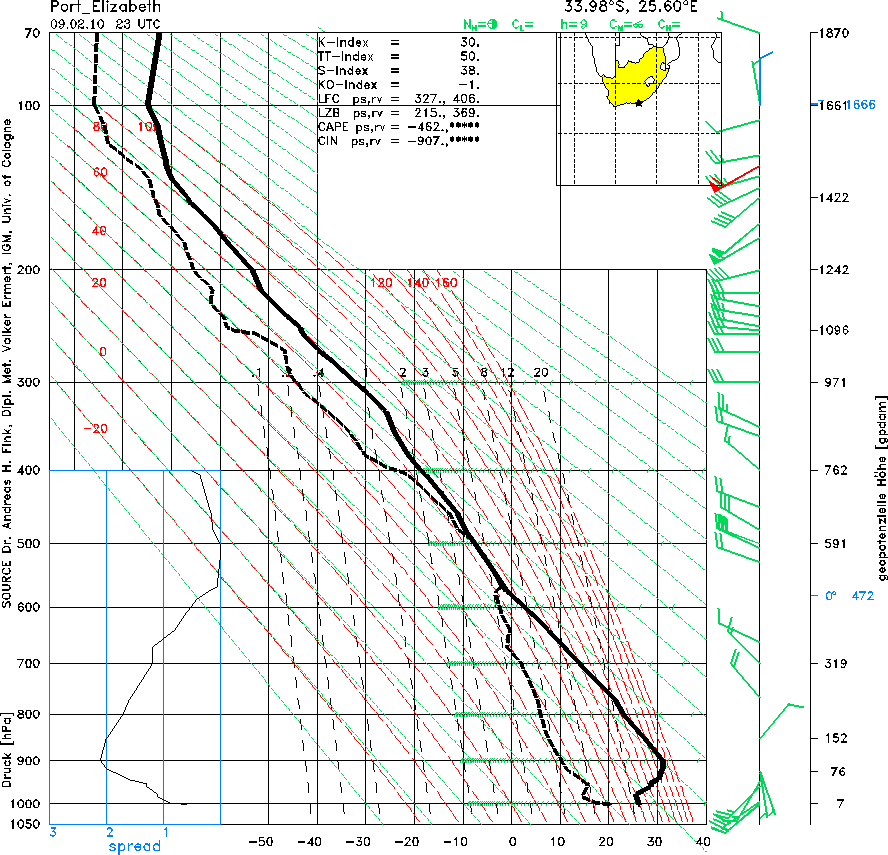

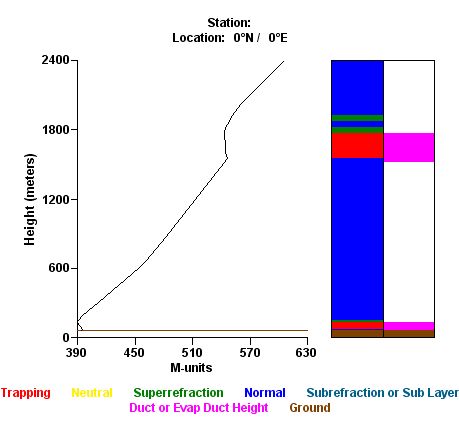

P.ELISABETH

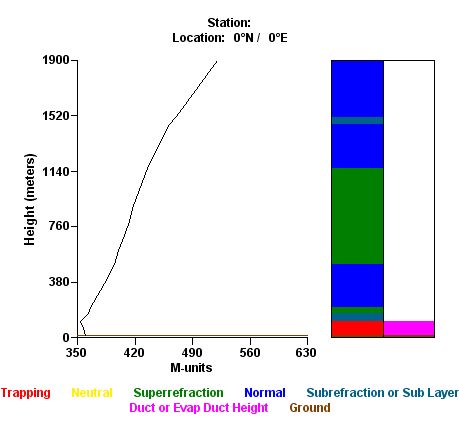

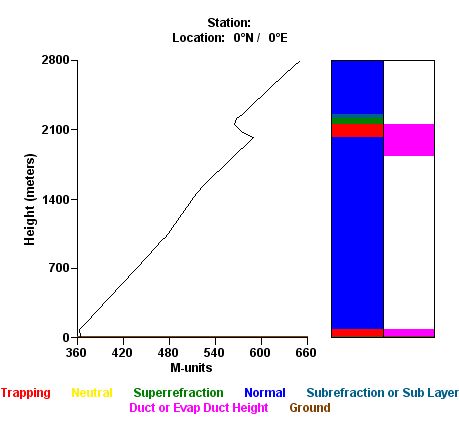

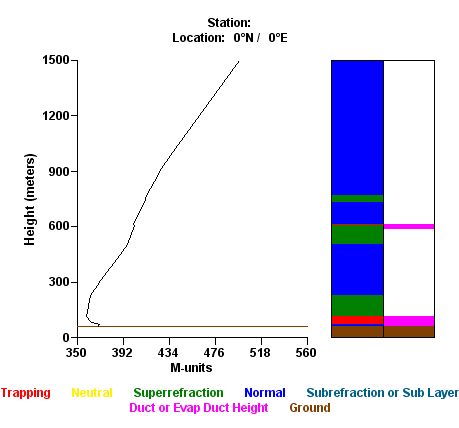

4-The predicted data from NOAA Air Resources Laboratory - GDAS1 Profile

Durban 09/02/2010 06z	South 5R8 09/02/2010 06z	FR 09/02/2010 06z	PE 09/02/2010 06z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 374. 0.001 0.1 601. 0.010 2.2 ** 833. 0.012 2.7 1072. 0.010 2.5 1570. 0.009 4.4 2094. 0.004 1.9 2645. 0.001 0.7 3224. 0.001 0.6 3835. 0.003 1.8 4484. 0.004 2.4 5179. 0.004 2.6 5929. 0.006 4.2 6745. 0.005 4.1 7638. 0.003 2.4 8621. 0.003 2.8 9719. 0.003 2.8 10966. 0.001 1.4 12417. 0.003 4.7 14198. 0.008 14.3 16631. 0.012 28.5 20700. 0.025 26462. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 389. 0.000 0.0 614. 0.000 0.1 843. 0.001 0.2 1076. 0.003 0.7 1560. 0.005 2.6 ** 2069. 0.008 4.2 2610. 0.011 5.8 3184. 0.006 3.2 3795. 0.005 3.4 4448. 0.005 3.3 5148. 0.005 3.7 5902. 0.005 3.9 6721. 0.003 2.4 7614. 0.002 1.6 8595. 0.002 2.2 9690. 0.002 2.7 10934. 0.002 3.1 12392. 0.005 6.6 14182. 0.006 10.9 16589. 0.012 29.7 20657. 0.023 94.2 26397. 0.034 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 361. 0.000 0.0 587. 0.000 0.0 817. 0.000 0.1 1051. 0.002 0.4 1537. 0.006 2.8 ** 2049. 0.007 3.7 2590. 0.008 4.2 3166. 0.007 3.9 3778. 0.005 2.9 4430. 0.005 3.1 5129. 0.005 3.6 5883. 0.006 4.5 6705. 0.005 4.2 7605. 0.004 3.8 8601. 0.004 3.7 9714. 0.002 2.5 10980. 0.003 4.0 12460. 0.002 3.4 14250. 0.003 4.8 16617. 0.010 24.7 20623. 0.026 26315. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 340. 0.002 0.5 566. 0.006 1.3 799. 0.019 4.4 ** 1040. 0.016 3.8 1543. 0.009 4.4 2071. 0.004 1.9 2625. 0.003 1.7 3210. 0.001 0.5 3826. 0.001 0.7 4477. 0.001 0.6 5170. 0.005 3.4 5921. 0.005 4.0 6736. 0.004 3.5 7629. 0.005 4.0 8618. 0.005 4.5 9724. 0.002 2.3 10979. 0.001 1.5 12433. 0.001 1.5 14202. 0.007 11.7 16620. 0.015 37.0 20733. 0.023 95.2 26514. 0.034 **
Durban 09/02/2010 12z	South 5R8 09/02/2010 12z	FR 09/02/2010 12z	PE 09/02/2010 12z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 350. 0.004 0.5 580. 0.003 0.8 816. 0.005 1.2 1057. 0.008 2.0 1557. 0.007 3.7 ** 2082. 0.002 1.1 2633. 0.002 1.2 3213. 0.002 1.4 3827. 0.003 1.8 4479. 0.003 2.3 5175. 0.003 2.3 5926. 0.005 4.0 6743. 0.005 3.7 7635. 0.003 2.4 8619. 0.003 3.1 9718. 0.002 2.3 10964. 0.001 1.6 12414. 0.003 4.2 14192. 0.008 13.9 16621. 0.012 30.1 20698. 0.025 26450. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 374. 0.000 0.1 599. 0.001 0.1 829. 0.001 0.3 1063. 0.004 0.8 1549. 0.007 3.3 ** 2061. 0.011 5.5 2605. 0.007 3.8 3180. 0.005 2.7 3792. 0.005 3.2 4445. 0.005 3.0 5144. 0.005 3.2 5898. 0.006 4.8 6718. 0.002 1.8 7609. 0.002 2.0 8592. 0.002 2.4 9687. 0.002 2.4 10934. 0.004 4.5 12395. 0.003 4.5 14179. 0.006 10.1 16586. 0.013 30.9 20661. 0.024 99.6 26408. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 351. 0.000 0.0 577. 0.000 0.0 807. 0.000 0.0 1042. 0.001 0.3 1527. 0.006 2.7 ** 2038. 0.009 4.4 2580. 0.006 3.3 3154. 0.008 4.8 3767. 0.006 3.5 4422. 0.006 4.1 5126. 0.005 3.6 5884. 0.005 3.7 6707. 0.004 2.9 7606. 0.005 4.1 8603. 0.004 3.6 9716. 0.002 2.6 10982. 0.002 3.1 12457. 0.002 2.9 14251. 0.004 7.3 16616. 0.009 22.3 20624. 0.027 26322. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 301. 0.006 1.4 536. 0.010 2.4 ** 776. 0.007 1.6 1022. 0.005 1.2 1531. 0.003 1.5 2063. 0.001 0.7 2622. 0.001 0.6 3208. 0.001 0.5 3826. 0.001 0.6 4480. 0.001 0.7 5178. 0.005 3.2 5930. 0.005 3.6 6746. 0.005 3.8 7641. 0.005 4.1 8632. 0.003 3.2 9735. 0.001 1.3 10986. 0.002 2.3 12441. 0.002 3.2 14217. 0.006 10.7 16628. 0.014 33.6 20743. 0.024 98.5 26512. 0.034 **
Durban 09/02/2010 18z	South 5R8 09/02/2010 18z	FR 09/02/2010 18z	PE 09/02/2010 18z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 353. 0.007 1.0 580. 0.005 1.1 813. 0.014 3.1 ** 1053. 0.017 4.0 1554. 0.008 4.0 2081. 0.002 1.1 2633. 0.002 0.9 3214. 0.002 1.4 3828. 0.002 1.5 4479. 0.003 2.0 5176. 0.004 2.9 5927. 0.006 4.5 6745. 0.004 3.1 7639. 0.003 3.1 8625. 0.003 2.6 9726. 0.002 2.5 10974. 0.001 1.8 12424. 0.002 2.5 14191. 0.007 12.8 16620. 0.014 33.8 20717. 0.024 97.0 26474. 0.034 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 383. 0.000 0.0 608. 0.001 0.1 837. 0.001 0.2 1071. 0.003 0.7 1555. 0.008 3.7 ** 2067. 0.011 5.5 2610. 0.006 3.5 3185. 0.005 3.0 3797. 0.006 3.4 4450. 0.004 2.9 5148. 0.005 3.7 5904. 0.006 4.6 6724. 0.002 1.6 7616. 0.002 2.2 8599. 0.003 2.9 9699. 0.003 3.4 10953. 0.004 4.5 12418. 0.003 3.7 14204. 0.005 9.3 16610. 0.012 29.8 20677. 0.025 26411. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 362. 0.000 0.1 588. 0.000 0.0 817. 0.000 0.1 1052. 0.002 0.4 1536. 0.006 3.0 ** 2049. 0.010 5.0 2591. 0.007 4.0 3167. 0.007 4.2 3781. 0.004 2.6 4434. 0.005 3.6 5135. 0.005 3.5 5891. 0.005 3.9 6713. 0.005 4.0 7615. 0.005 4.9 8615. 0.003 3.3 9733. 0.002 2.6 11000. 0.002 2.0 12474. 0.002 2.8 14264. 0.004 7.2 16634. 0.009 22.3 20629. 0.027 26350. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 302. 0.016 3.5 ** 537. 0.016 3.7 777. 0.004 1.1 1021. 0.003 0.6 1528. 0.004 1.9 2060. 0.003 1.5 2618. 0.002 1.0 3204. 0.001 0.7 3823. 0.001 0.4 4477. 0.001 0.7 5173. 0.002 1.3 5922. 0.006 4.8 6738. 0.006 4.6 7632. 0.005 4.4 8623. 0.004 3.5 9731. 0.002 2.6 10986. 0.001 1.2 12444. 0.003 3.7 14230. 0.006 11.3 16642. 0.013 31.7 20752. 0.024 98.1 26531. 0.033 **
Durban 10/02/2010 06z	South 5R8 10/02/2010 06z	FR 10/02/2010 06z	PE 10/02/2010 06z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 338. 0.003 0.4 565. 0.020 4.5 ** 800. 0.014 3.3 1041. 0.008 1.9 1542. 0.003 1.7 2066. 0.003 1.5 2616. 0.003 1.7 3197. 0.003 2.0 3811. 0.002 1.3 4463. 0.004 2.6 5162. 0.005 3.4 5916. 0.004 3.4 6732. 0.003 2.5 7624. 0.004 3.3 8611. 0.004 3.5 9713. 0.002 2.6 10964. 0.002 2.8 12424. 0.003 4.3 14202. 0.004 7.7 16609. 0.014 34.4 20692. 0.025 26451. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 381. 0.000 0.0 606. 0.001 0.2 835. 0.000 0.1 1069. 0.001 0.3 1553. 0.007 3.6 ** 2066. 0.013 6.9 2609. 0.005 2.5 3185. 0.005 2.7 3795. 0.006 3.4 4447. 0.006 3.8 5147. 0.005 3.6 5903. 0.005 3.4 6720. 0.002 1.6 7611. 0.003 2.9 8593. 0.003 2.8 9695. 0.004 4.8 10953. 0.004 4.6 12422. 0.002 2.9 14204. 0.004 7.0 16599. 0.012 29.0 20660. 0.025 26385. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 361. 0.000 0.0 587. 0.000 0.0 816. 0.000 0.0 1050. 0.002 0.4 1535. 0.005 2.5 ** 2046. 0.013 6.4 2589. 0.005 2.6 3164. 0.007 3.8 3776. 0.006 3.5 4429. 0.007 4.3 5132. 0.006 4.4 5891. 0.005 3.8 6717. 0.004 3.5 7620. 0.005 4.6 8619. 0.002 2.4 9735. 0.002 1.8 10998. 0.002 2.7 12473. 0.003 4.1 14265. 0.004 6.6 16629. 0.008 19.5 20631. 0.028 26331. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 312. 0.002 0.5 537. 0.012 2.6 ** 770. 0.015 3.4 1011. 0.013 3.1 1512. 0.011 5.3 2041. 0.004 1.9 2597. 0.002 1.1 3182. 0.002 0.9 3799. 0.002 0.9 4452. 0.002 1.4 5150. 0.004 2.5 5901. 0.004 3.2 6716. 0.005 3.9 7608. 0.004 3.5 8592. 0.003 3.0 9693. 0.003 3.3 10946. 0.002 2.9 12406. 0.003 4.3 14196. 0.006 10.8 16602. 0.013 30.2 20719. 0.024 26505. 0.034 **
Durban 10/02/2010 12z	South 5R8 10/02/2010 12z	FR 10/02/2010 12z	PE 10/02/2010 12z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 307. 0.005 0.5 537. 0.003 0.7 774. 0.006 1.4 1016. 0.007 1.8 1519. 0.007 3.5 ** 2047. 0.003 1.4 2600. 0.003 1.6 3184. 0.002 1.2 3800. 0.001 0.8 4454. 0.003 1.8 5153. 0.005 3.6 5908. 0.004 3.2 6725. 0.003 2.7 7620. 0.004 3.6 8607. 0.003 3.3 9710. 0.002 1.8 10960. 0.002 2.7 12423. 0.004 5.5 14213. 0.005 8.7 16611. 0.013 32.0 20696. 0.024 98.5 26432. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 362. -.001 -0.2 587. 0.000 0.0 817. 0.001 0.2 1051. 0.003 0.8 1536. 0.010 5.0 ** 2053. 0.012 6.2 2599. 0.003 1.8 3175. 0.004 2.6 3787. 0.005 3.0 4439. 0.005 3.2 5139. 0.005 3.4 5893. 0.005 3.6 6711. 0.003 2.1 7602. 0.003 2.8 8585. 0.003 3.3 9688. 0.003 3.6 10945. 0.004 4.6 12414. 0.002 3.6 14199. 0.004 6.9 16596. 0.012 29.3 20648. 0.025 26404. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 343. 0.000 0.1 569. 0.000 0.0 800. 0.000 0.1 1035. 0.002 0.5 1521. 0.006 2.8 ** 2033. 0.011 5.8 2578. 0.005 2.6 3156. 0.006 3.4 3768. 0.006 3.5 4422. 0.006 3.7 5123. 0.006 3.9 5881. 0.006 4.2 6705. 0.005 4.0 7609. 0.005 4.2 8607. 0.003 2.5 9722. 0.002 2.8 10989. 0.003 3.2 12468. 0.003 3.9 14264. 0.003 5.3 16622. 0.008 18.6 20623. 0.027 26319. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 326. 0.001 0.1 552. 0.002 0.6 782. 0.008 2.0 1018. 0.011 2.5 ** 1512. 0.009 4.7 2033. 0.007 3.4 2584. 0.004 2.1 3164. 0.003 1.8 3779. 0.004 2.4 4433. 0.004 2.3 5131. 0.003 2.0 5882. 0.005 3.8 6697. 0.004 3.4 7589. 0.003 3.0 8572. 0.003 3.2 9672. 0.003 3.1 10925. 0.003 3.8 12392. 0.003 5.1 14167. 0.003 5.2 16589. 0.015 35.6 20717. 0.025 26491. 0.033 **
Durban 10/02/2010 18z	South 5R8 10/02/2010 18z	FR 10/02/82010 18z	PE 10/02/2010 18z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 310. 0.016 1.5 539. 0.006 1.4 774. 0.013 3.0 ** 1015. 0.013 3.2 1519. 0.008 3.8 2048. 0.003 1.5 2602. 0.002 1.1 3185. 0.002 1.1 3800. 0.001 0.7 4453. 0.003 1.8 5150. 0.005 3.2 5903. 0.004 3.2 6718. 0.004 3.2 7613. 0.005 4.1 8600. 0.003 3.2 9703. 0.002 2.3 10956. 0.003 3.9 12427. 0.003 5.1 14208. 0.003 5.3 16612. 0.014 34.7 20695. 0.025 26438. 0.031 * 0.030	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 365. 0.000 0.1 590. 0.000 0.0 820. 0.000 0.1 1055. 0.002 0.4 1540. 0.010 4.8 ** 2056. 0.013 6.6 2602. 0.003 1.5 3179. 0.005 2.7 3791. 0.005 2.9 4443. 0.004 2.9 5142. 0.005 3.5 5896. 0.005 3.9 6714. 0.003 2.4 7608. 0.003 2.9 8593. 0.003 3.1 9697. 0.004 4.1 10956. 0.004 4.6 12428. 0.002 2.5 14209. 0.004 6.7 16610. 0.013 31.3 20675. 0.025 26404. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 354. 0.000 0.0 581. 0.000 0.0 811. 0.000 0.1 1046. 0.002 0.5 1532. 0.005 2.6 ** 2045. 0.011 5.6 2590. 0.006 3.2 3166. 0.005 2.6 3778. 0.008 4.7 4433. 0.005 3.5 5135. 0.006 4.2 5895. 0.005 3.9 6721. 0.005 4.2 7626. 0.004 3.7 8624. 0.002 1.6 9736. 0.002 2.6 11000. 0.002 3.0 12476. 0.003 5.1 14271. 0.002 4.0 16625. 0.010 23.8 20639. 0.027 26345. 0.034 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 349. 0.000 0.0 574. 0.002 0.4 802. 0.002 0.6 1036. 0.006 1.5 1521. 0.008 3.8 ** 2034. 0.007 3.4 2577. 0.008 4.2 3153. 0.007 3.9 3765. 0.005 2.8 4417. 0.004 2.5 5114. 0.004 2.7 5865. 0.005 3.6 6680. 0.004 3.3 7570. 0.004 3.9 8556. 0.004 4.2 9660. 0.002 2.6 10914. 0.002 2.8 12376. 0.003 4.2 14155. 0.004 7.4 16564. 0.016 38.7 20700. 0.023 96.2 26506. 0.033 **

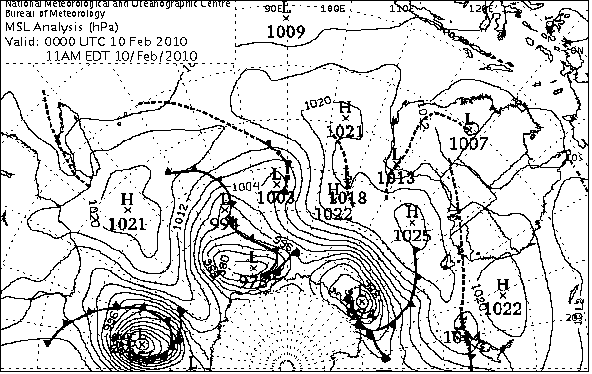

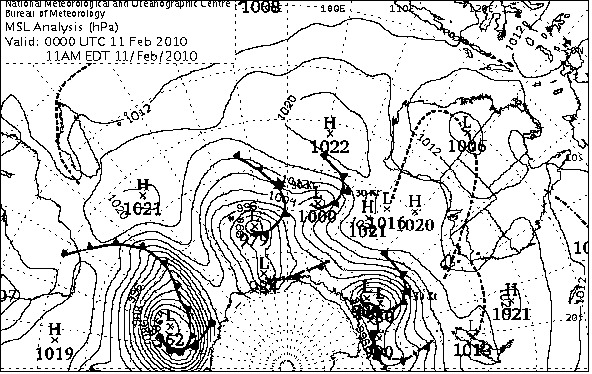

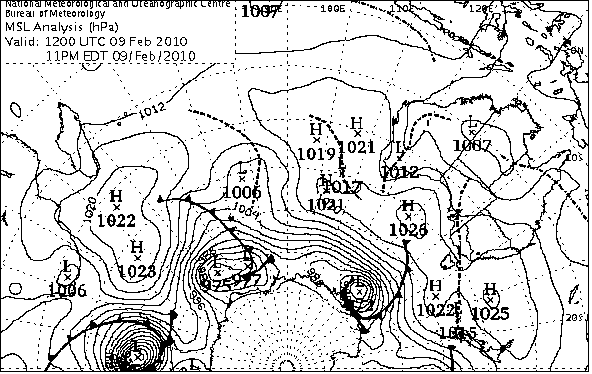

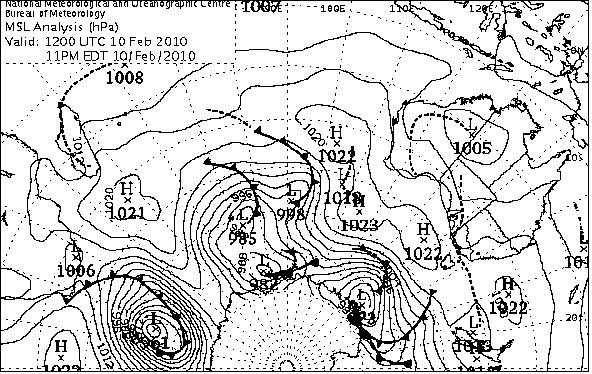

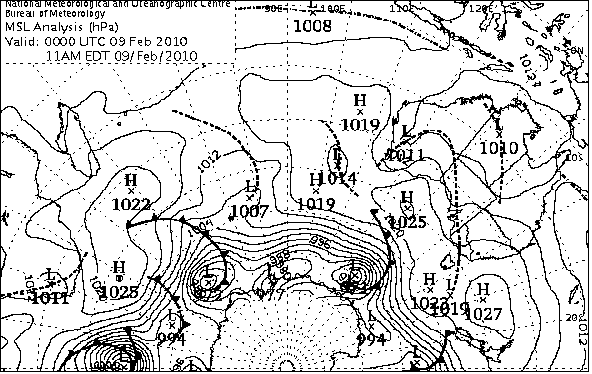

5-The surface pressure chart

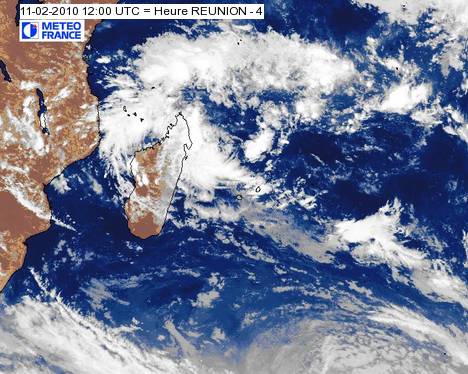

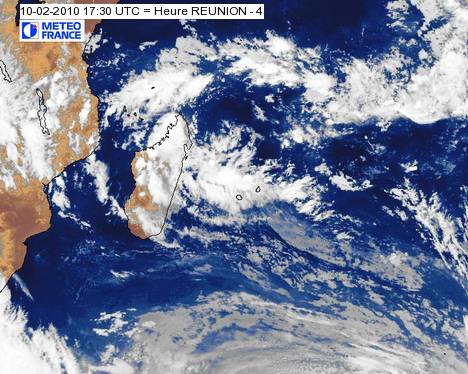

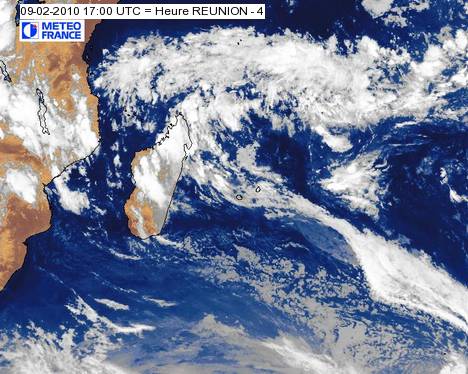

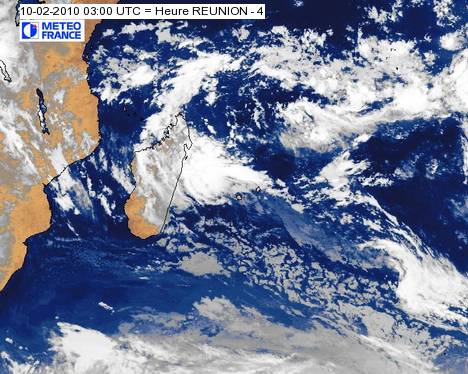

6-The visible map

7-The QSO's

2m was opened from 09/02 afternoon (11z) up to 10/02 evening!
More than 24 hours of DX!.......

2m rx at FR5DN (i used separate rx)	2m rx at ZS side
09 Feb 2010	10 Feb 2010
184600 4 -5 0.2 27 7 * CQ FR5DN LG78 1 0 184700 15 -15 -0.1 16 3 * 184800 6 -8 0.0 24 10 * CQ FR5DN LG78 1 0 184900 1 -28 -0.5 27 3 * FR5DN ZS2ACP KF26 0 6 185000 5 -5 -0.1 24 8 # ZS2ACP FR5DN LG78 OOO 1 0 185100 0 -28 7.5 -584 8 185200 6 -4 0.1 24 5 # ZS2ACP FR5DN LG78 OOO 1 0 185300 1 -29 0.1 54 3 * 185400 4 -5 0.0 22 7 # ZS2ACP FR5DN LG78 OOO 1 0 185500 4 -24 0.1 62 3 * FR5DN ZS2ACP KF26 0 10 185600 5 -4 0.1 22 7 # ZS2ACP FR5DN LG78 OOO 1 0 185700 6 -21 0.1 70 2 * FR5DN ZS2ACP KF26 1 10 185800 6 -4 0.1 22 5 # ZS2ACP FR5DN LG78 OOO 1 0 185900 2 -24 0.1 78 3 * FR5DN ZS2ACP KF26 0 10 190000 6 -5 0.2 24 5 # ZS2ACP FR5DN LG78 OOO 1 0 190100 1 -31 83 3 RO ? 190200 6 -2 0.1 27 4 # 190300 1 -31 89 4 73 ? 190400 10 -20 24 2 RRR ? 190500 0 -32 7.9 -436 31 190600 10 -19 25 3 73 ? 190700 0 -33 1.8 -401 10 190800 9 -4 0.2 24 7 * CQ FR5DN LG78 1 0 190900 6 -18 0.1 -27 5 * FR5DN ZS2GK -15 1 0 191000 8 -3 0.3 24 5 * CQ FR5DN LG78 1 0 191100 10 -4 0.1 -30 1 * CONGRA ZS2ACP 1 0 191200 7 -2 0.3 24 5 * ZS2GK FR5DN 1 0 191300 9 -6 0.3 -27 4 * 3205 KM 1 0 191400 0 -21 -0.1 5 18 191500 0 -22 9.0 -493 17 191600 0 -29 8.6 -100 47 191700 0 -33 2.7 396 24 191800 7 -5 0.5 30 2 * 191900 4 -4 -1.3 27 4 # 192000 7 -6 0.0 30 4 * OK 3205KM 1 0 192100 3 -6 -1.4 363 2 # 192200 7 -5 0.2 27 7 * CQ FR5DN LG78 1 0 192300 0 -33 8.3 258 50 192400 7 -4 0.1 27 5 * CQ FR5DN LG78 1 0 192500 0 -33 -0.1 -377 29 192600 3 -5 0.3 22 7 * CQ FR5DN LG78 1 0 192700 0 -33 1.1 261 2 192800 6 -5 0.2 24 5 * CQ FR5DN LG78 1 0 192900 13 -13 0.2 -213 3 * FR5DN ZS5Y KF59 1 10 193000 5 -2 0.1 19 3 # ZS5Y FR5DN LG78 OOO 1 0 193100 10 -20 -211 2 RO ? 193200 10 -23 20 4 RRR ? 193300 10 -20 -211 2 73 ? 193400 10 -22 18 2 73 ? 193500 11 -5 0.3 -215 2 * TNX PHIL 1 0 193600 5 -6 0.1 19 8 * CQ FR5DN LG78 1 0 193700 0 -33 4.6 315 3 193800 3 -5 0.1 13 7 * CQ FR5DN LG78 1 0 193900 0 -29 6.1 -576 15 194000 7 -6 0.2 13 8 * CQ FR5DN LG78 1 0 194100 0 -29 3.8 -576 36 194200 5 -6 0.2 16 8 * CQ FR5DN LG78 1 0 194300 0 -18 8.8 48 20 194400 0 -29 9.7 -522 18 194500 0 -25 2.7 -415 22 194600 0 -4 0.1 221 3 194700 0 -23 4.7 458 5 194800 7 -4 0.2 -30 7 * CQ FR5DN LG78 1 0 194900 0 -31 5.7 -541 15 195000 6 -6 -0.1 -32 8 * CQ FR5DN LG78 1 0 195100 0 -33 7.4 180 42 195200 4 -4 0.1 -27 5 * 195300 9 -20 0.5 -229 3 * FR5DN ZS5LEE KG50 1 10 195400 6 -5 -0.3 -27 5 # ZS5LEE FR5DN LG78 OOO 1 0 195500 10 -19 0.5 -229 3 * FR5DN ZS5LEE KG50 1 10 195600 7 -3 -0.4 -30 4 # ZS5LEE FR5DN LG78 OOO 1 0 195700 4 -9 -1.4 -8 4 # 195800 7 -4 0.4 -30 6 # ZS5LEE FR5DN LG78 OOO 1 0 195900 2 -26 0.6 -229 2 * FR5DN ZS5LEE KG50 0 10 200000 6 -5 0.1 -32 6 # ZS5LEE FR5DN LG78 OOO 1 0 200100 0 -33 6.6 -183 26 200200 6 -4 0.0 -32 5 # ZS5LEE FR5DN LG78 OOO 1 0 200300 4 -24 0.2 -223 1 * FR5DN ZS5LEE KG50 1 10 200400 7 -4 0.1 -32 5 # ZS5LEE FR5DN LG78 OOO 1 0 200500 0 -33 1.8 -143 18 200600 6 -5 0.1 -30 7 # ZS5LEE FR5DN LG78 OOO 1 0 200700 12 -14 0.9 -331 3 * FR5DN ZS5DJ KF59 1 0 200800 6 -4 0.2 -32 5 # ZS5LEE FR5DN LG78 OOO 1 0 200900 10 -15 -226 2 RO ? 201000 0 1 3.9 127 6 201100 10 -19 -226 4 73 ? 201200 10 -24 -33 3 73 ? 201300 5 -1 -1.3 -38 3 # 201400 3 -6 0.2 -38 7 * ZS5DJ FR5DN LG78 1 0 201500 2 -19 0.6 -336 2 * FR5DN ZS5DJ KF59 1 10 201600 7 -6 0.2 -35 6 # ZS5DJ FR5DN LG78 OOO 1 0 201700 10 -14 -335 2 RO ? 201800 10 -22 -35 2 RRR ? 201900 14 -9 1.0 -336 3 * FR5DN ZS5DJ 73 1 10 202000 10 -21 -35 2 73 ? 202100 10 -5 1.0 -339 3 * TNX QSO PHIL 1 0 202200 6 -5 -0.3 -32 5 * GREAT 202300 19 -2 1.0 -342 3 * TNX QSO PHIL 1 0 202400 6 -6 0.1 -38 8 * CQ FR5DN LG78 1 0 203500 9 -4 1.0 -355 4 * PHIL TRY SSB 1 0 203600 0 -27 -1.4 -568 28 203700 14 -4 1.0 -353 3 * GO SSB ZS5DJ 1 0	This is just to illustrate the signal levels From ZS5Y:051800 3 -23 -0.1 121 4 * CQ FR5DN LG78 1 10 052800 1 -24 -0.1 124 2 * CQ FR5DN LG78 0 10 053000 1 -29 -0.2 127 9 * CQ FR5DN LG78 0 10 053200 0 -29 -0.1 124 2 * CQ FR5DN LG78 0 10 053400 4 -23 -0.3 132 5 * CQ FR5DN LG78 1 10 053600 1 -26 -0.1 127 5 * CQ FR5DN LG78 1 10 054000 3 -17 -0.3 132 5 * CQ FR5DN LG78 1 10 054200 2 -22 -0.1 129 2 * CQ FR5DN LG78 1 10 054400 3 -19 -0.3 129 5 * CQ FR5DN LG78 1 10 054600 7 -18 -0.3 135 4 * CQ FR5DN LG78 1 10 054800 5 -15 -0.3 129 7 * CQ FR5DN LG78 1 10 055000 5 -16 -0.3 129 5 * CQ FR5DN LG78 1 10 055200 2 -25 -0.2 129 7 * CQ FR5DN LG78 0 10 055400 6 -16 -0.6 129 9 * CQ FR5DN LG78 1 10 055600 5 -12 -0.4 135 7 * CQ FR5DN LG78 0 10 055800 4 -17 -0.4 129 1 * CQ FR5DN LG78 1 10 060000 5 -13 -0.2 129 9 * CQ FR5DN LG78 1 10 060200 3 -23 -0.2 137 3 * CQ FR5DN LG78 0 7 060400 1 -21 -0.4 135 2 * CQ FR5DN LG78 0 10 060800 4 -22 -0.4 137 4 * CQ FR5DN LG78 1 10 061200 2 -25 -0.3 132 8 * CQ FR5DN LG78 0 10 062400 1 -25 -0.6 135 7 * CQ FR5DN LG78 0 10 062600 2 -20 -0.4 137 1 * CQ FR5DN LG78 1 10 062800 5 -21 -0.3 143 3 * CQ FR5DN LG78 0 9 063000 5 -16 -0.4 137 7 * CQ FR5DN LG78 1 10 063200 2 -27 -0.3 137 6 * CQ FR5DN LG78 0 6 063400 0 -28 -0.3 135 2 * CQ FR5DN LG78 0 6 063600 1 -25 -0.4 140 5 * CQ FR5DN LG78 0 10 063800 5 -21 -0.3 137 3 * CQ FR5DN LG78 1 10 064000 7 -23 -0.3 143 3 * CQ FR5DN LG78 0 10 064200 4 -24 -0.4 143 3 * CQ FR5DN LG78 0 10 064400 3 -18 -0.5 140 5 * CQ FR5DN LG78 1 10 064600 5 -18 -0.4 137 10 * CQ FR5DN LG78 1 10 064800 2 -29 -0.2 143 3 * CQ FR5DN LG78 0 10 065000 5 -15 -0.4 137 8 * CQ FR5DN LG78 1 10 065200 7 -8 -0.4 137 10 * CQ FR5DN LG78 1 10 065400 9 -11 -0.6 143 5 * CQ FR5DN LG78 0 10 065600 7 -12 -0.6 137 8 * CQ FR5DN LG78 1 10 065800 9 -8 -0.4 143 5 * CQ FR5DN LG78 0 10 070000 6 -9 -0.5 137 7 * CQ FR5DN LG78 1 10 070200 1 -5 -0.7 135 1 * CQ FR5DN LG78 1 10 070400 3 -6 -0.7 140 5 * CQ FR5DN LG78 1 10 070600 2 -9 -0.6 135 1 * CQ FR5DN LG78 1 10 070800 4 -6 -0.6 140 5 * CQ FR5DN LG78 0 10 071000 7 -8 -0.6 137 9 * CQ FR5DN LG78 1 10 071200 7 -9 -0.6 137 11 * CQ FR5DN LG78 1 10 071400 10 -8 -0.8 143 8 * CQ FR5DN LG78 1 10 071600 3 -9 -0.8 140 9 * CQ FR5DN LG78 1 10 071800 2 -15 -0.6 140 4 * CQ FR5DN LG78 1 10 072000 1 -16 -0.7 135 8 * CQ FR5DN LG78 1 10 072200 2 -26 -0.7 137 3 * CQ FR5DN LG78 1 10 072400 0 -22 -0.7 137 2 * CQ FR5DN LG78 1 10 072600 4 -19 -0.7 135 6 * CQ FR5DN LG78 1 10 072800 1 -20 -0.7 137 3 * CQ FR5DN LG78 1 10 073000 3 -24 -0.6 140 4 * CQ FR5DN LG78 0 10 073400 3 -28 -0.7 140 10 * CQ FR5DN LG78 0 10 074200 0 -29 -0.7 137 3 * CQ FR5DN LG78 0 9 074800 0 -29 -0.6 132 13 * CQ FR5DN LG78 ? 0 5 075000 4 -26 -0.9 132 9 * CQ FR5DN LG78 1 10 075200 4 -24 -0.9 132 5 * CQ FR5DN LG78 075400 1 -27 -0.8 137 10 * CQ FR5DN LG78 ? 0 5 075600 0 -23 -0.8 135 1 * CQ FR5DN LG78 1 10 075800 2 -24 -0.8 135 5 * CQ FR5DN LG78 080600 1 -25 -0.6 129 8 * CQ FR5DN LG78 115800 2 -23 -1.9 159 7 * CQ FR5DN LG78 0 10 120200 0 -27 -1.8 156 12 * CQ FR5DN LG78 0 8 121200 0 -25 -1.9 135 9 * CQ FR5DN LG78 0 10 121600 0 -28 -1.9 124 3 * CQ FR5DN LG78 0 6 121800 2 -25 -1.9 124 11 * CQ FR5DN LG78 0 10 122400 2 -25 -1.9 116 9 * CQ FR5DN LG78 1 10 123000 6 -15 -1.9 113 8 * CQ FR5DN LG78 1 10 123200 7 -12 -1.9 118 5 * CQ FR5DN LG78 1 10 123400 10 -14 -1.9 118 10 * CQ FR5DN LG78 1 10 123600 2 -20 -1.9 113 5 * CQ FR5DN LG78 1 10 123800 2 -25 -1.9 113 9 * CQ FR5DN LG78 130200 1 -15 -1.9 108 6 * CQ FR5DN LG78 1 10 130400 6 -14 -1.9 116 9 * CQ FR5DN LG78 0 10 130600 0 -15 -1.9 113 8 * CQ FR5DN LG78 131800 2 -22 -1.9 116 5 * CQ FR5DN LG78
70cms decoded by FR5DN	ZS5Y decodes on 70cms
10 Feb 2010	10 Feb 2010
Decoded by FR5DN 165500 8 -14 0.5 -490 5 # FR5DN ZS5Y KF59 OOO 1 10 165700 10 -22 -508 4 RRR ? 165900 5 -7 0.5 -519 8 * TNX PHIL 735 -7 0.5 -519 8 * TNX PHIL 73	Decoded by ZS5Y > 165200 10 -5 -0.3 484 3 * CQ FR5DN LG78 1 10 > 165400 1 -4 -0.3 487 4 * ZS5Y FR5DN LG78 1 10 > 165600 10 -22 497 3 RO > 165800 10 -11 514 2 RRR > 170000 10 -20 519 3 73 Here are a couple of additional decodes made on my side as you can see, a lot of QSB ! -18 -8 -16 -20 -26 and so on. 172400 9 -18 -0.4 -161 3 * CQ FR5DN LG78 1 10 172500 0 -33 -1.8 -175 36 172600 16 -8 -0.4 -164 3 * CQ FR5DN LG78 1 10 172700 0 -33 0.8 -135 37 172800 12 -16 -0.4 -167 3 * CQ FR5DN LG78 1 10 172900 0 -33 0.4 -148 44 173000 12 -20 -0.4 -170 3 * CQ FR5DN LG78 1 10 173100 0 -33 3.1 -167 55 174800 4 -26 -0.3 -170 3 * CQ FR5DN LG78 0 8 174900 0 -31 3.1 -137 11 # 175000 10 -15 -0.6 -167 3 * CQ FR5DN LG78 1 10 175100 0 -32 6.0 -148 42 * 175200 4 -24 -0.4 -164 3 * CQ FR5DN LG78 1 10 175300 0 -33 1.4 -118 1 175400 5 -16 -0.4 -161 3 * CQ FR5DN LG78 1 10 175500 0 -32 2.5 -127 18 # 175600 8 -12 -0.4 -161 2 * CQ FR5DN LG78 1 10 175700 0 -33 -1.6 -159 49 175800 2 -24 -0.4 -164 3 * CQ FR5DN LG78 0 10

8-Some comments

Equipment at FR5DN :

On 2m:
In "beacon mode", 80w out into 17el F9FT-13dbd yagi at 6m above ground.
Old PC dedicated to the 2m station for digital modes and AIS receiver (modified FT-2500M).
For qso, i can use up to 150w out max in shack
Mast mounted LNA, some 18db gain and around 0.6db NF, probably more.
Coax is a average low loss rigid coax equivalent to LCF14-50, attenuation 5db/100m, length of some 22m (let say 1db loss).
I use separate TX and RX lines, which make things much more flexible, RX line is standard RG-213.
RX is Kenwood R-5000.
TRX for beacon and qso is dedicated Kenwood TR-9000.

These qso are in reach of medium stations for sure.

On 70cms:
I usually run 8x21el with mast mounted LNA (>30db gain, and 0.4db NF).

But, a week or so before the opening, my winch broke, and all array felt down the tower, breaking antennas, H frame, coax, etc, etc, you can easily imagine the situation...

On 09/02, after the qso with ZS5Y Derek on 2m, i asked him to try 70cms, even if i had no antenna on 70cms, and so i used the 2m yagi.
Swr was not perfect as expected but not that high as expected. I called, but without any luck, and then switched back on 2m.

After some email exchange with Derek, he pushed me to try and put up a repaired yagi for 70cms. I wanted to do so, but the fact that Derek told me this, motivated me really harder (Tks Derek!!!) , and so, as said, i worked hard after qrl to get an antenna up the tower. As i had to almost "rebuild" the outside 70cms stations, new temporary winch, cutting/mounting coax, repairing/fixing antenna, verifying rotator ok, testing swr, etc...i had no time to get second coax for rx, and so no relay and no LNA on the tower, as dark was there. Anyway, i was "ready" for some 70cms action!

E-mailed Derek to let him know, that FR was on the air on 432Mhz as well...

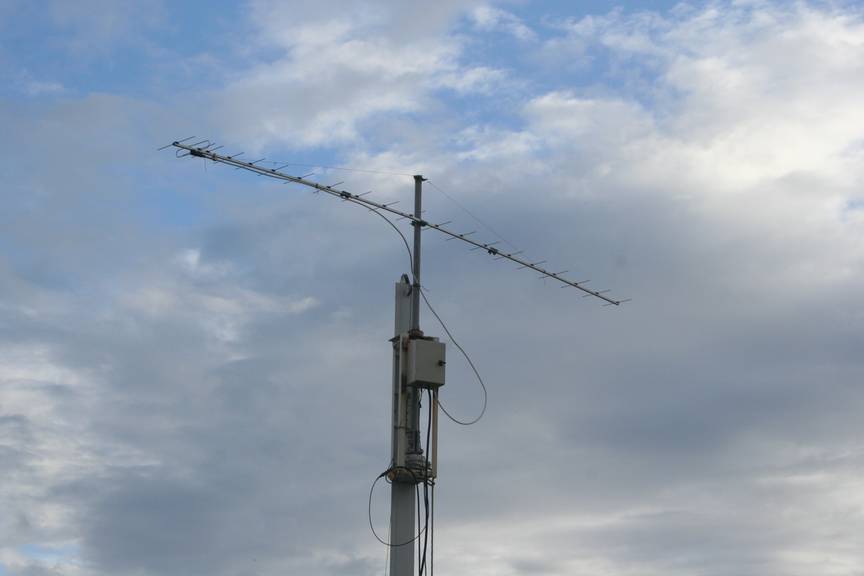

On 70cms, i was running a single 21 el yagi at 7m above ground.
Low loss coax, mixed length of hardline 7/8 and some length of lcf14-50.
Power was about 250-300w at first, then decreased to 150w, maybe a bit less. On SSB i was in the 150w range, down to 100w on some tx.
I used NO LNA! and Derek was really strong on some sequence, even if he was 20w i would have got him OK in JT mode (and cw)!

Just before 17z, the first ever 70cms tropospheric ducting qso was achieved, 2655kms, on JT65b; then i asked Derek to qsy SSB, and managed another .qso!

Read Derek comments here : First 70cm contact between ZS and FR.pdf

I have quite a lot of recorded files of the 2m qso's.

Equipment at ZS5Y
On 2m : 2M12 13dbd yagi with no preamp and brick PA with 150w.
On 70cms : 4x12el, 60w, LNA.

Equipment at ZS5LEE

2m: I was using a Kenwwod TS2000X standard 100W Output into a single M2 2M18XXX
(18el Yagi Horizontal Polarization) feed line 7/8" hard line. No LNA was used during the qso.

---------------------------------------------------
That last opening was for long period, as least in 2m for sure.
I miss a 70cms beacon in such situation, so no idea how long the 432Mhz was opened...

So far, since the first on 2m in 2008, almost all signals were speaker copy. Modes we have operated on 2m and 70cms were SSB, digital, and ...FM.
I miss cw.

Also, next opening, if possible, i'd like to make some tests regarding the power, and try to go as low as possible.
It could be just funny...

Alone, you can't qso, and i really want here to thank all the ZS operators who monitored the bands, waiting for the opening, and finally succeeded after seriously preparing their station. Without You, there would be NO QSO, that is a fact!...
